Onda
Multiwall Corrugated Polycarbonate Sheets for Industrial Roofing
- Fast dispatch
- Easy returns
- Secure checkout
Key features

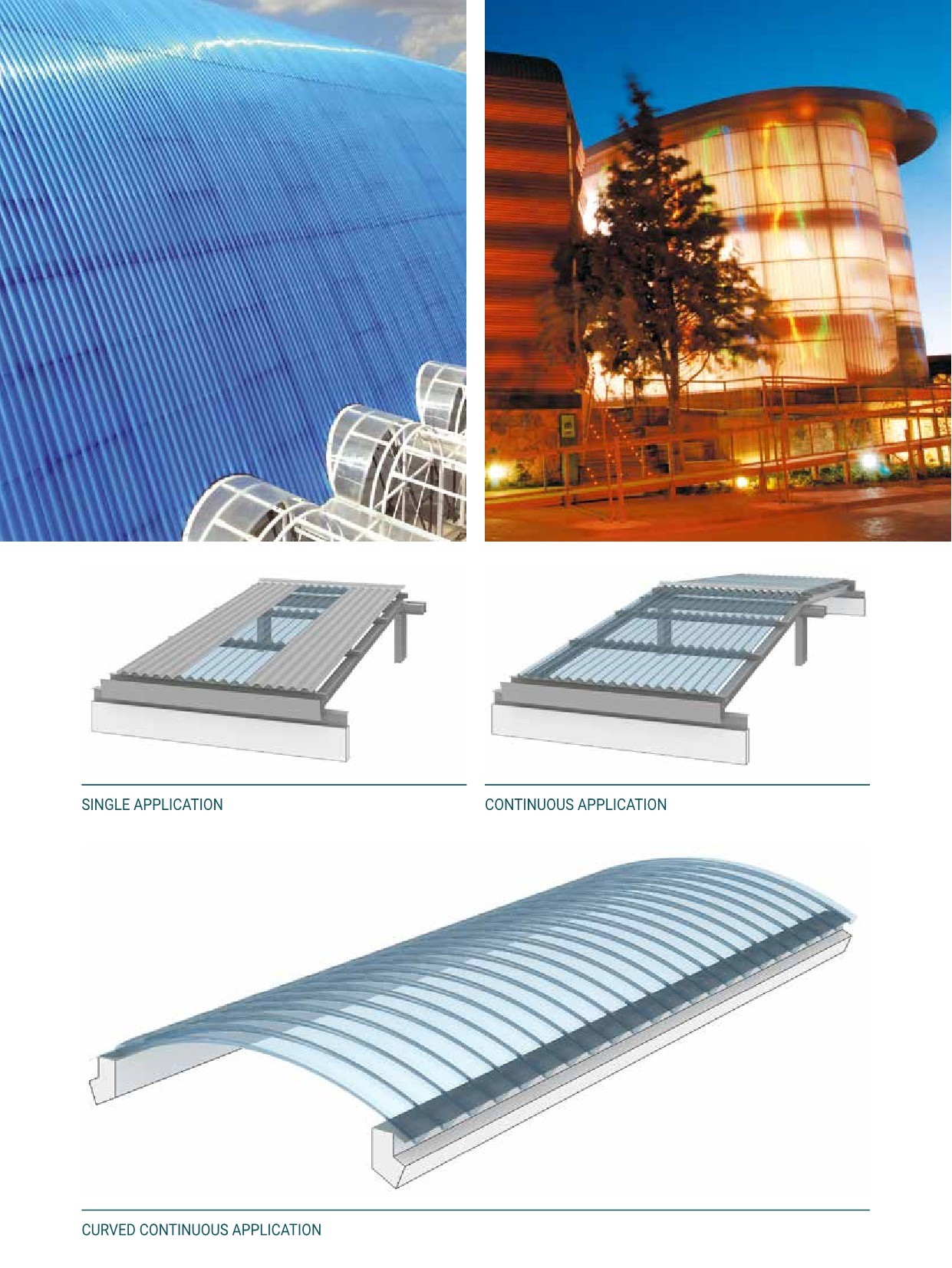

- Designed for industrial roofing and skylights, both flat and curved (bending radius 3500 mm)
- Multiple width options for easy overlapping and installation
- Optional coextruded gasket for improved air and watertightness
- Fast and easy installation with a complete range of accessories
- High resistance to aging, yellowing, impact, and hail
ONDA panels are polycarbonate multiwall corrugated sheets, extruded according to European standard 177/51. Available in different widths (5½, 6½, and 7½ waves), they offer versatile overlapping solutions for a wide range of industrial roofing needs. ONDA sheets can also be cold bent with a 3500 mm radius, making them suitable for both flat and curved applications.

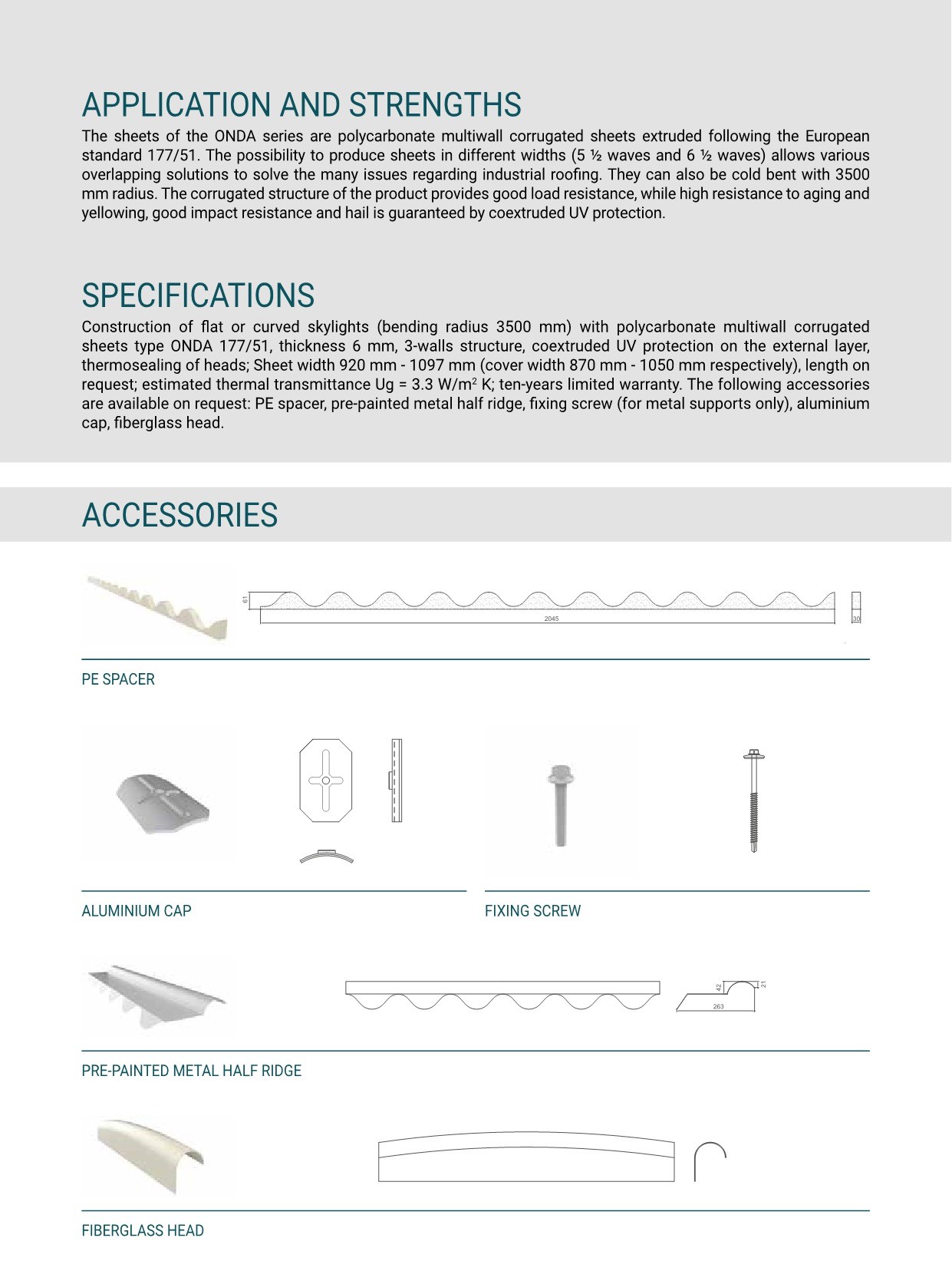

Accessories
A full range of accessories is available, including:
PE spacers
Aluminium caps
Fixing screws (for metal supports)
Pre-painted metal half ridge
Fiberglass head
Typical Applications
Industrial and commercial roofing
Skylights and daylighting systems
Curved or flat roof designs requiring high durability and light transmission

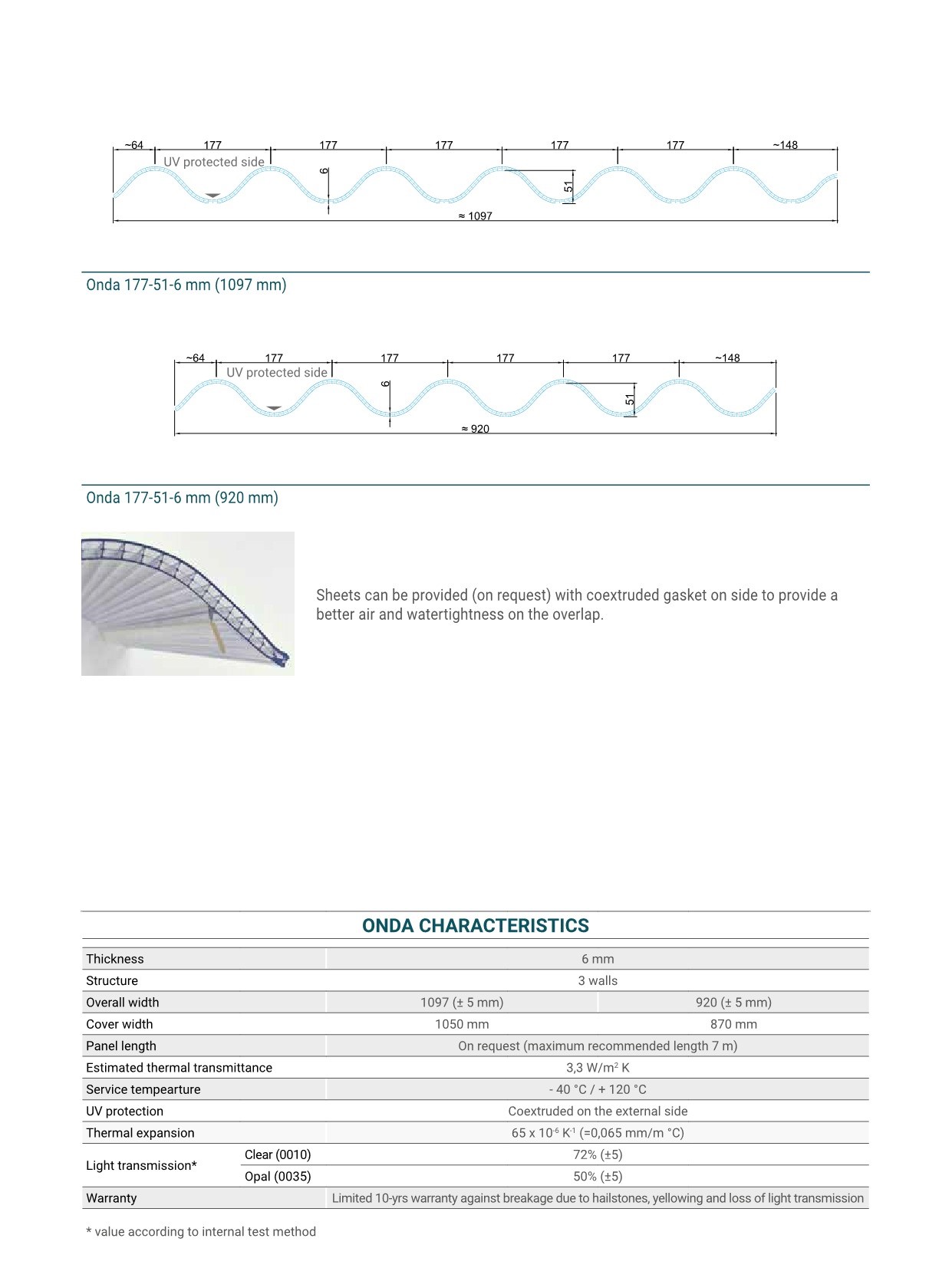

| Material | Polycarbonate |
|---|---|
| Available Thickness | 6 mm |
| Panel Widths | 920 mm, 1097 mm (cover width: 870 mm, 1050 mm) |
| Structure | 3-wall honeycomb for strength and insulation |
| Corrugated Shape | Excellent load resistance and stability |
| UV Protection | Coextruded on the external side for long-lasting clarity and durability |
| Light Transmission | Up to 72% (clear) and 50% (opal) |
| Service Temperature | -40°C to +120°C |
| Warranty | 10-year limited warranty against breakage, yellowing, and loss of light transmission |
