Radius 1000
Self-Supporting Curved Polycarbonate Panel for Skylights
$0.00
- Fast dispatch
- Easy returns
- Secure checkout
RADIUS 1000 is an extruded multiwall polycarbonate panel, pre-curved with a uniform 20 mm thickness and a 5-wall structure. Its special shape, achieved during the extrusion process, provides exceptional strength and makes it ideal for skylight applications in industrial and commercial buildings.

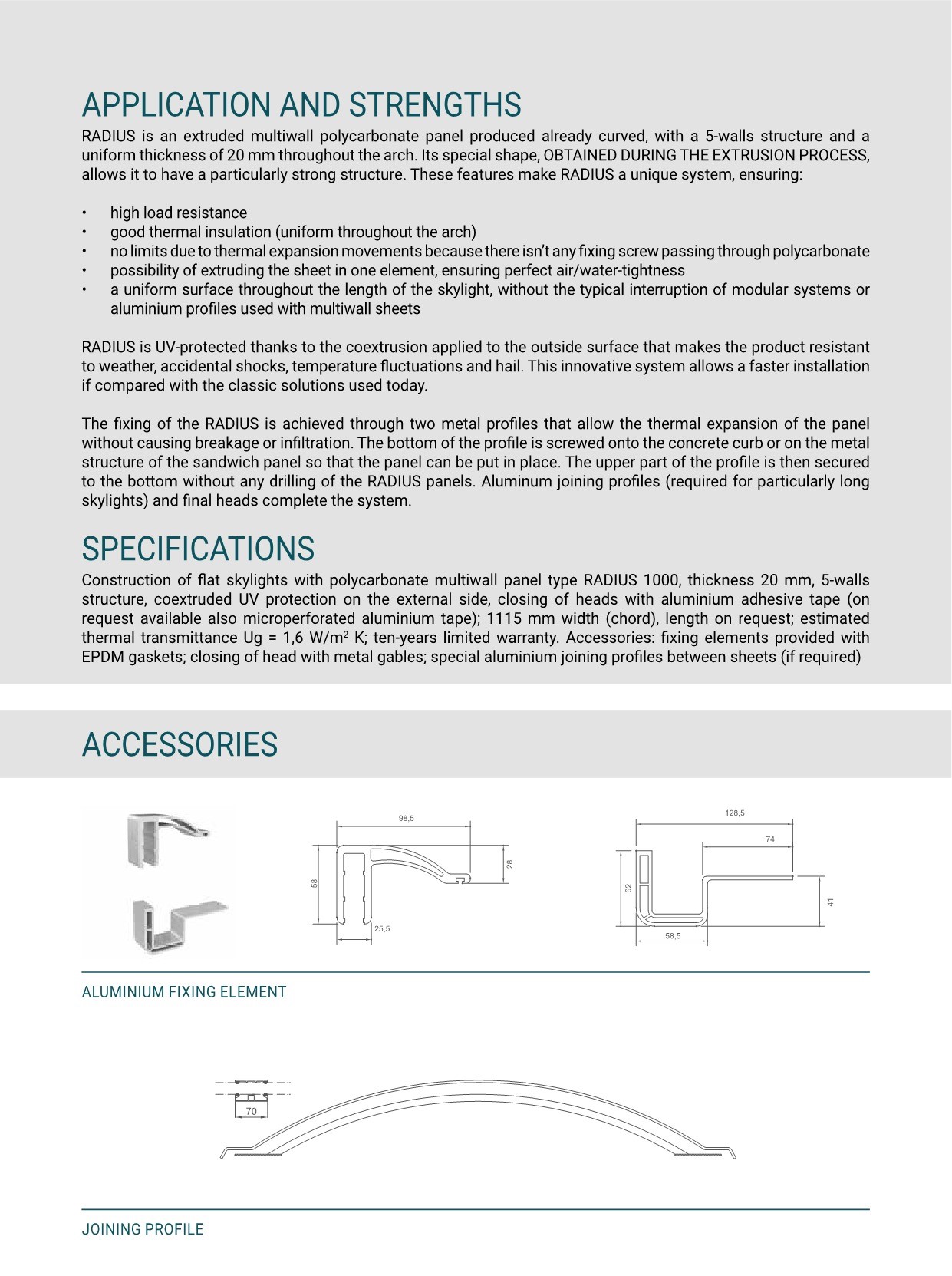

Application & Strengths
High load resistance and uniform thermal insulation throughout the arch
No fixing screws through the polycarbonate, allowing for free thermal expansion and perfect air/water-tightness
Uniform surface without interruptions, unlike modular systems or aluminum profiles
Fast and easy installation with dedicated aluminum fixing elements and joining profiles
Resistant to weather, accidental shocks, temperature fluctuations, and hail
Accessories
Aluminum fixing elements
Special joining profiles

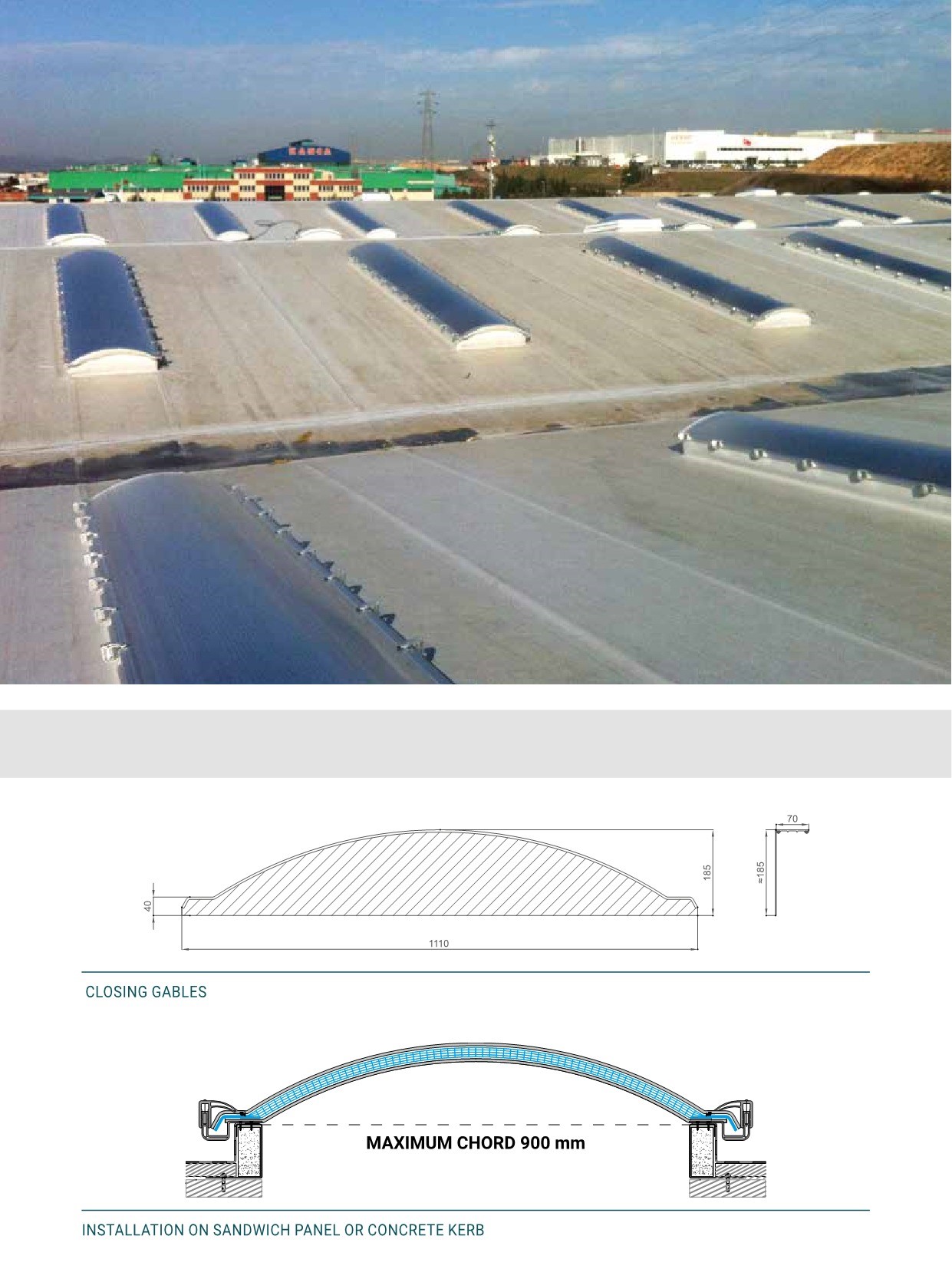

Closing gables for ends
EPDM gaskets
Typical Applications
- Industrial and commercial skylights
- Large-span curved rooflights
- Projects requiring high strength, insulation, and seamless aesthetics

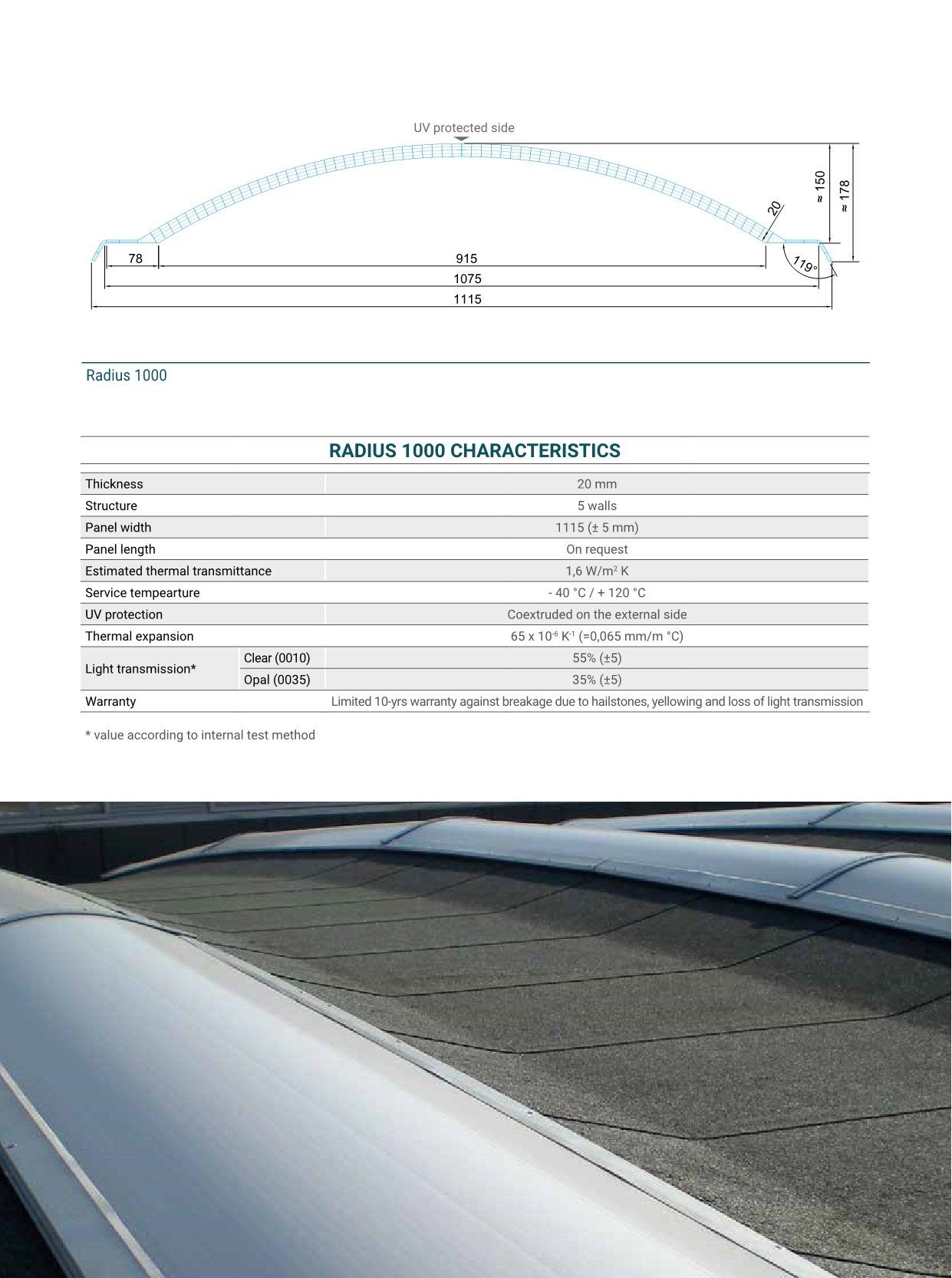

| Thickness | 20 mm |
|---|---|
| Panel Width | 1115 mm |
| Structure | 5-wall for high strength and insulation |
| UV Protection | Coextruded on the external side |
| Light Transmission | Up to 55% (clear), 35% (opal) |
| Thermal Insulation | Certified thermal transmittance of 1.6 W/m²K |
| Service Temperature | -40°C to +120°C |
| Warranty | 10-year limited warranty against breakage, yellowing, and loss of light transmission |
