Revers

Modular Polycarbonate System for Roofing and Vertical Glazing

$0.00

Fast dispatch
Easy returns
Secure checkout

The REVERS series is an innovative modular polycarbonate panel system designed for both roofing and vertical wall applications. Thanks to its unique interlocking joining profiles—available in both polycarbonate (for maximum transparency) and aluminum (for enhanced load resistance)—REVERS offers seamless aesthetics and superior performance.

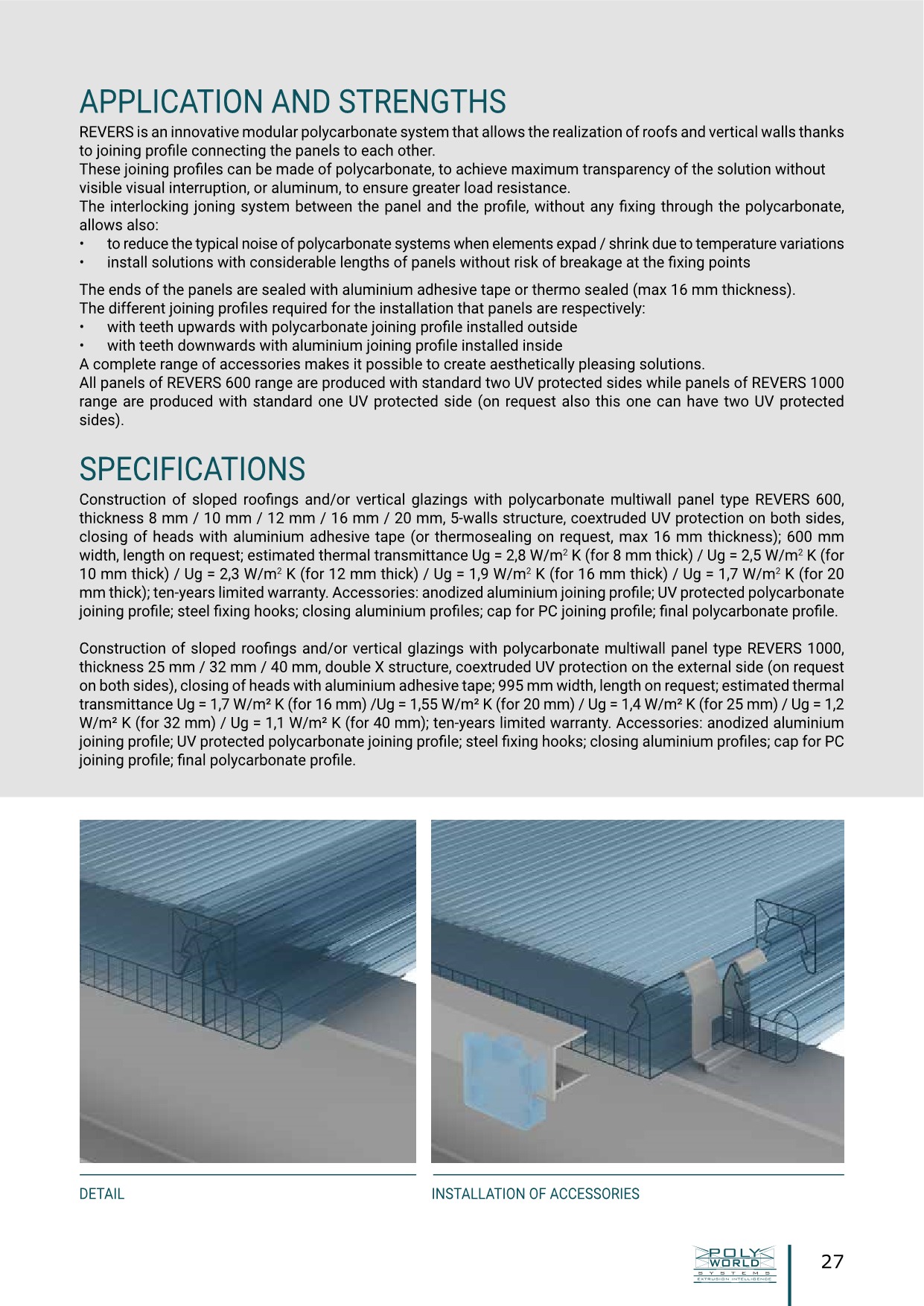

Application & Strengths

Ideal for sloped roofing, skylights, and vertical glazing in industrial, commercial, and architectural projects
Interlocking system reduces noise from thermal expansion and allows for long panel lengths without risk of breakage at fixing points
Choice of polycarbonate or aluminum joining profiles for tailored aesthetics and structural needs
Ends sealed with aluminum adhesive tape or thermo-sealed (up to 16 mm)
Complete range of accessories for secure and visually appealing installations

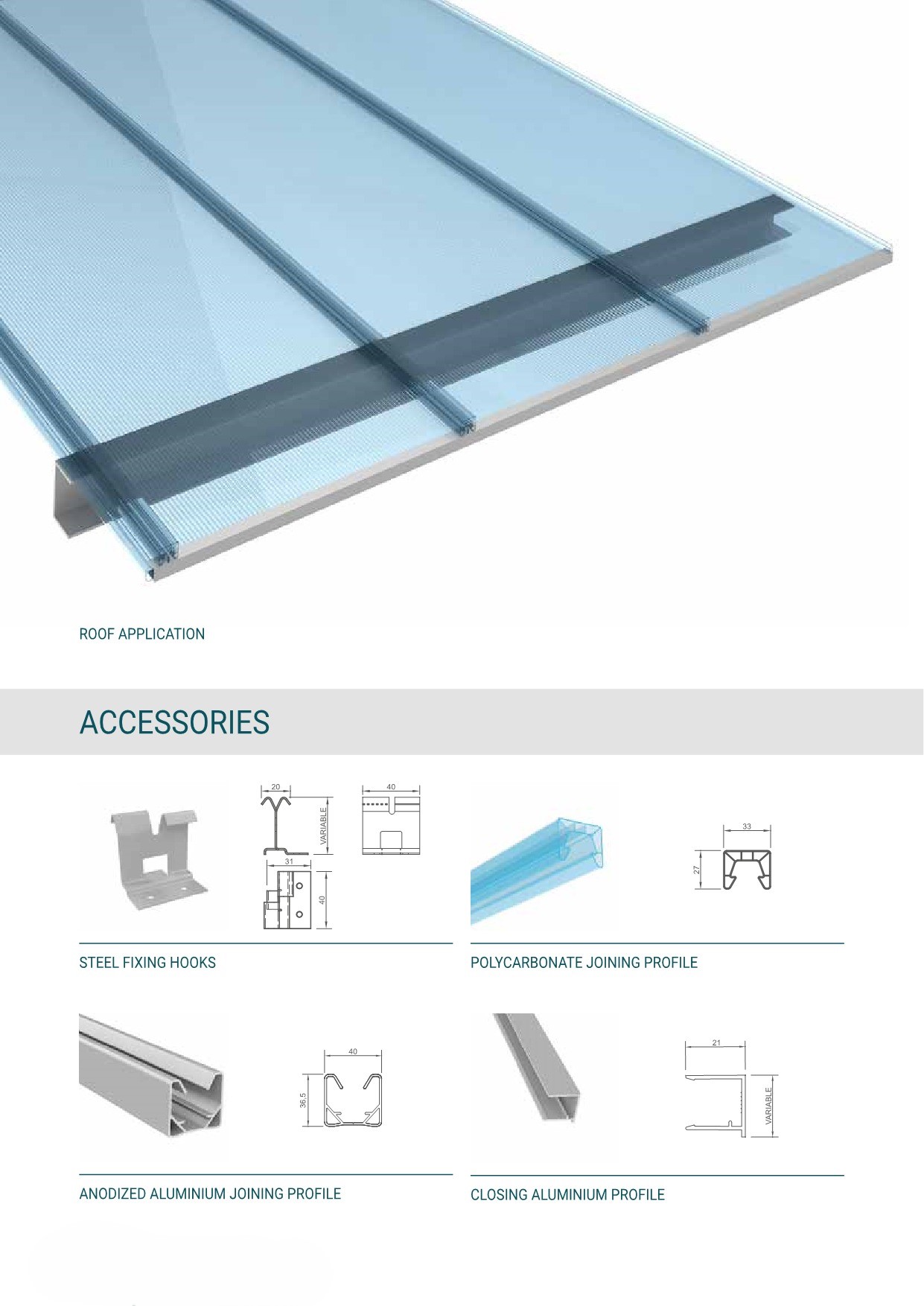

Accessories
A full range of accessories is available, including:

Steel and aluminum fixing hooks
Polycarbonate and aluminum joining profiles

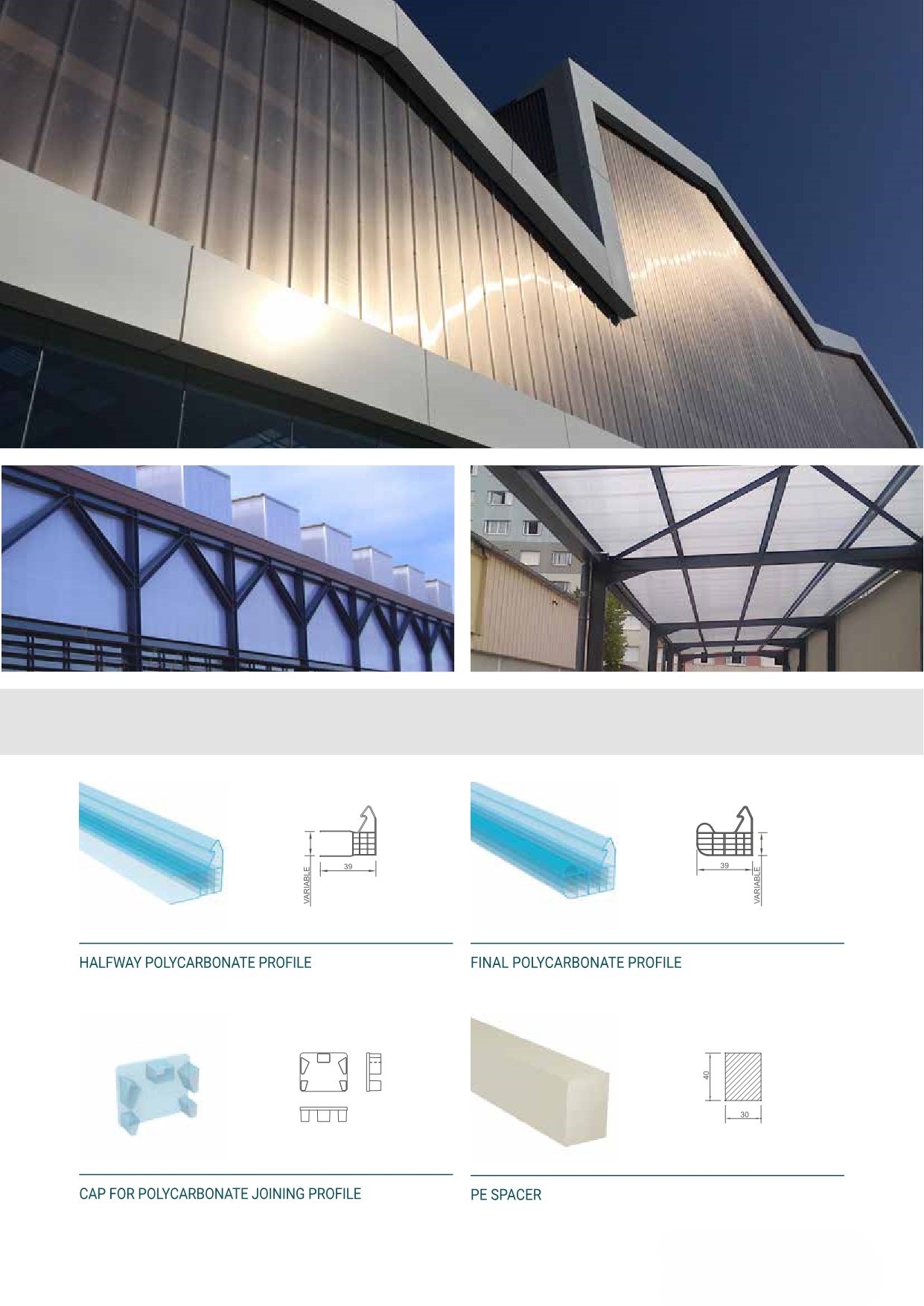

Closing and halfway profiles
End caps and PE spacers

Typical Applications

Roofs and skylights
Vertical facades and curtain walls
Canopies and covered walkways
Any project requiring high light transmission, thermal insulation, and modern aesthetics

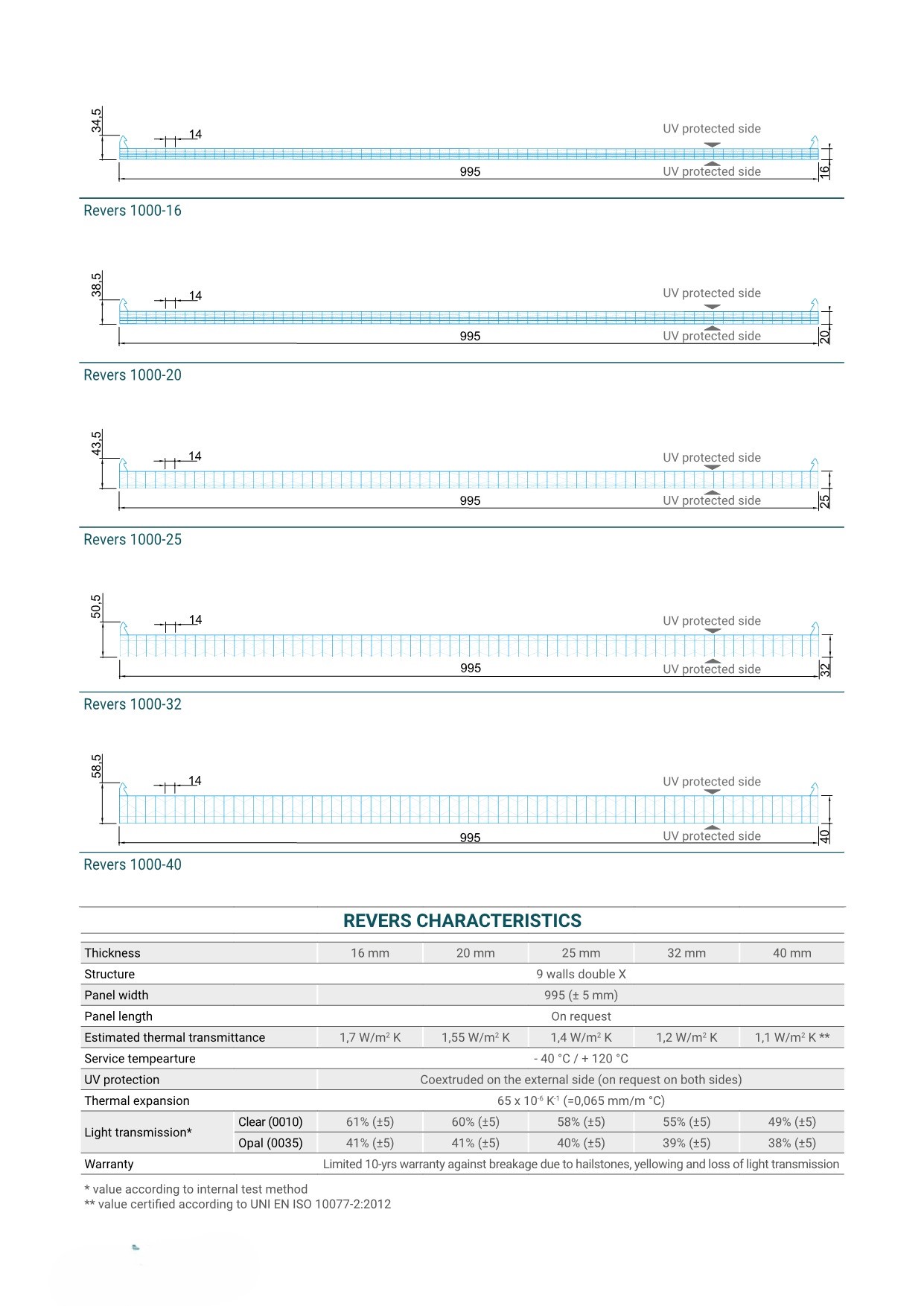

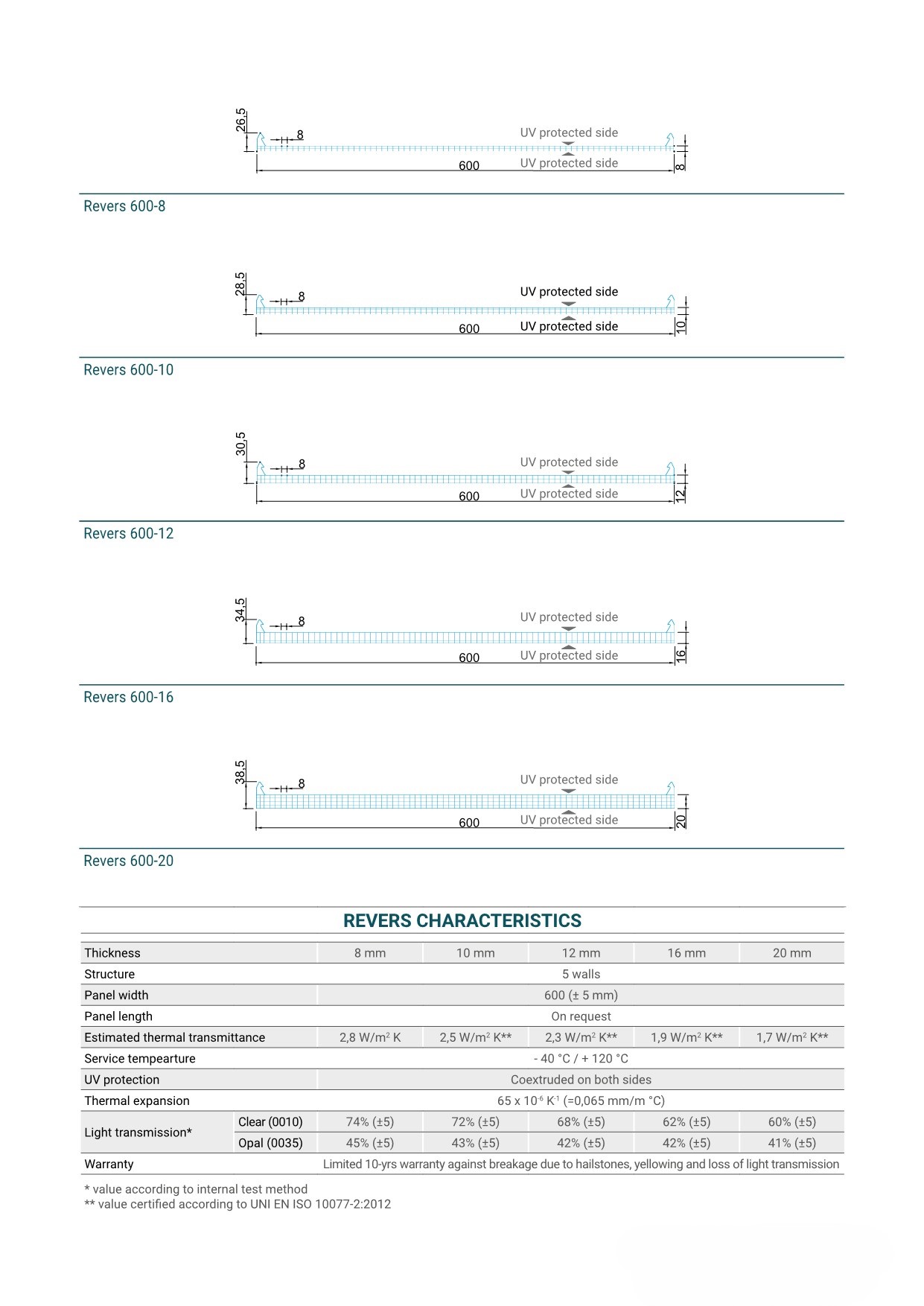

Multiple Thicknesses	8, 10, 12, 16, 20 mm (REVERS 600) and 16, 20, 25, 32, 40 mm (REVERS 1000)
Panel Widths	600 mm (REVERS 600) and 995 mm (REVERS 1000)
Advanced Structure	5-wall (REVERS 600) and 9-wall double X (REVERS 1000) configurations
UV Protection	Standard two-sided UV protection for REVERS 600; one-sided for REVERS 1000 (two-sided available on request)
Thermal Insulation	Certified thermal transmittance as low as 1.1 W/m²K (40 mm, REVERS 1000)
Light Transmission	Up to 74% (clear) and 45% (opal), depending on thickness
Service Temperature	-40°C to +120°C
Warranty	10-year limited warranty against breakage, yellowing, and loss of light transmission
